Conduit Fill Table

A conduit table is used to determine how many wires can be adjusted in a conduit tubing safely. The size and type of the conduit are referred to by horizontal numbers at the top of the graph and vertical lines indicate the wire gauge. This table is useful in making decisions related to wiring. The number of wires that can be set for each conduit and corresponding gauge size are represented by the central numbers. The percentage of the area covered by the wires inside the conduit is called conduit fill.

What are the uses of conduit fill table?

Here are mentioned some uses of conduit fill

1. Conduit fill table assists in easiest and fastest way of wiring a building and premises.
2. Conduit tables are made with the help of a conduit, which is simply a tube or covering that provides a path to electrical wires.

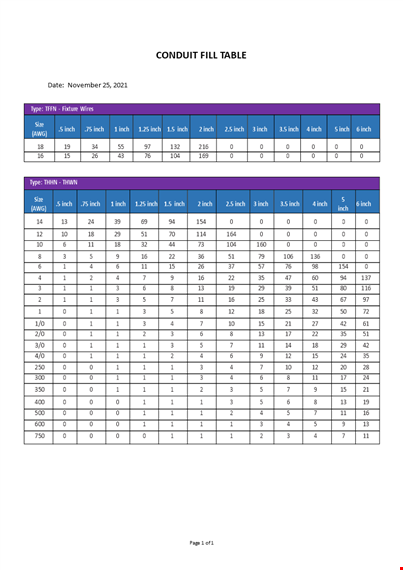

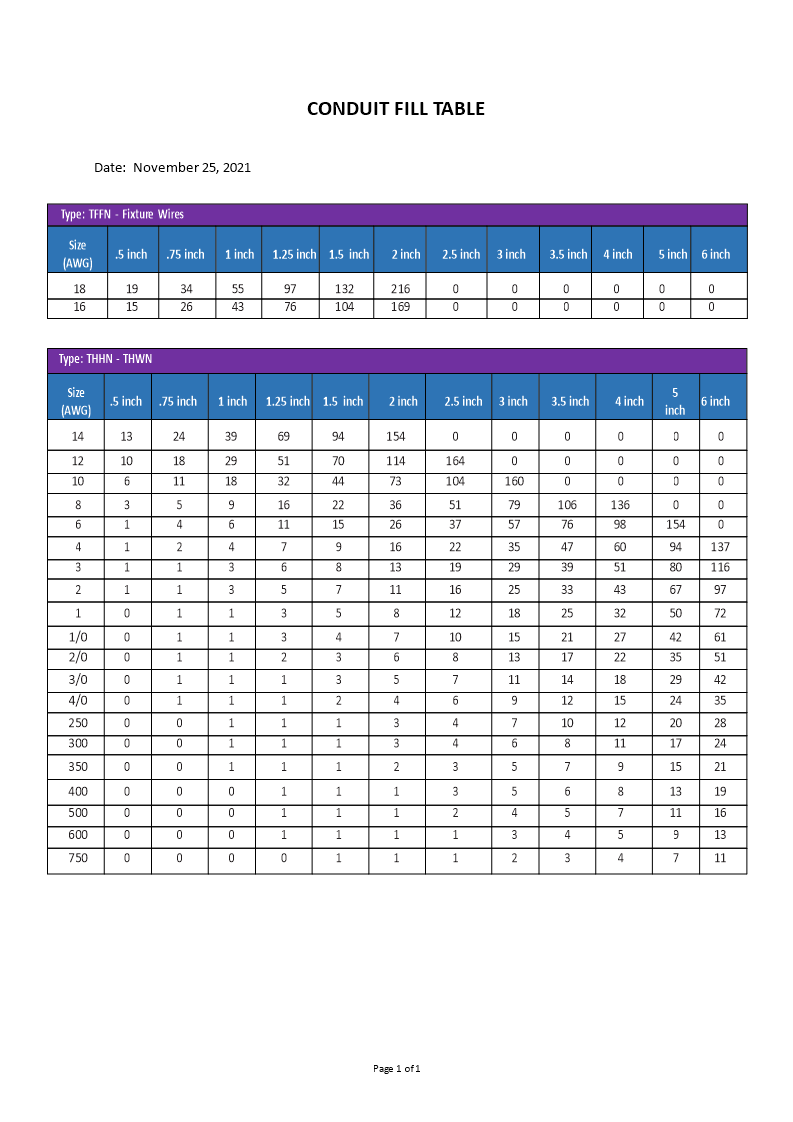

Here is attached a sample conduit fill table for your help and needs.
